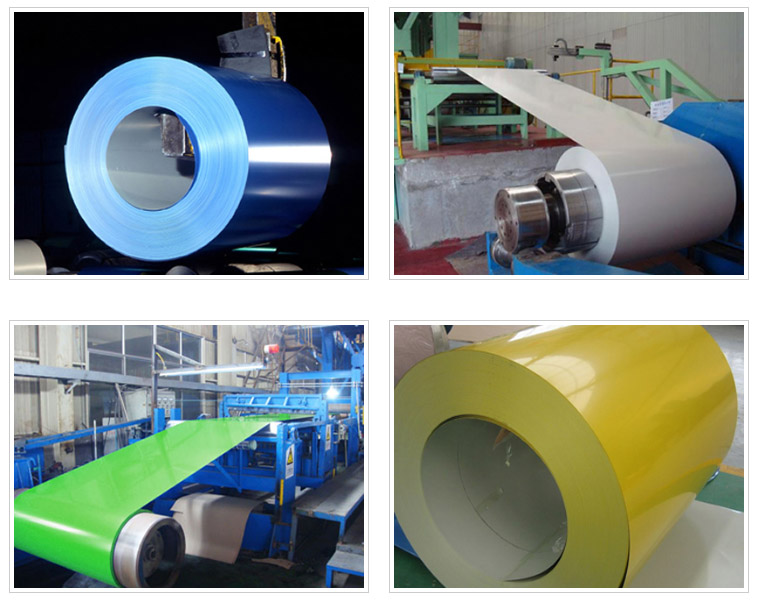

Pre-painted Galvanized Steel Coil

• 2 Views

As per JIS G3312/94 CGCC, GB/T 12754. EN 10169 DX51D+Z,commercial quality or Lock forming quality (LFQ)

Zinc coating:20g/m2 to 275 g/m2.

Top surface: 10 - 20 micron polyester + 5 micron primer

Back surface: 5 - 7 micron, or 7-8 micron polyester + 5 micron primer.

Color: According to RAL Card or Clients' requests.

Coil Weight: max. 13 MT

Coil ID: 508mm/610mm.

With or without protective film on the top side.

Categories of paint:polyester/silicon modified polyester (SMP)/PVDF

Thickness:0.18-1.20mm

Width:700-1250mm

Minimum order:50MT per size
