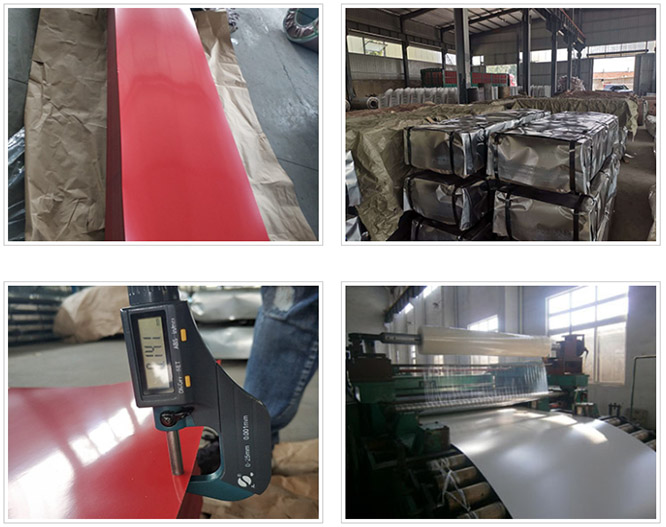

Pre-painted galvanized steel sheet/Plate

• 0 Views

Pre-painted galvanized steel sheet/Plate
As per JIS G3312/94 CGCC, GB/T 12754, EN10169 DX51D + Z, Commercial quality or Lock forming quality(LFQ)
Zinc coating: 20g/m2 to 275g/m2
Top surface: 10-20 micron polyester + 5 micron primer
Back surface: 5-7 micron, or 7-8 micron polyester + 5 micron primer
Color: according to RAL Card or Client’s requests
With or without protective film on the top side
Categories of paint: polyester/silicon modified polyester(SMP)/PVDF
Thickness: 0.15-1.2mm
Width: 700-1250mm
Length: 1500-5800mm
Minimum order: 50Mt per size
