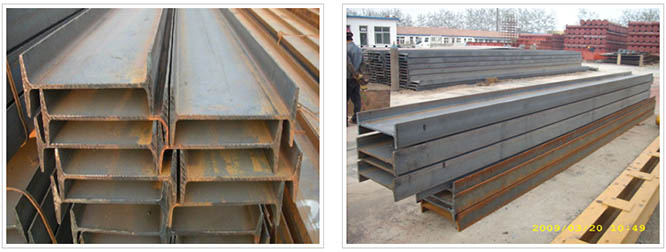

I-Beam
- 0 Views
As per JIS G3101 SS400, ASTM A36, EN 10025 S275JR, GB700 Q235B, Q345B etc.
Length as per customer’s request. Minimum order: 50MT per size.
| EN Standard Model | Leg Height (mm) | Waist Depth (mm) | Leg Depth (mm) | Theoretical Weight (kg/m) |
| 80 | 50 | 4.5 | 5.5 | 7.52 |
| 80 | 46 | 3.2 | 4.6 | 4.85 |
| 100 | 55 | 3.8 | 5 | 6.72 |
| 120 | 64 | 4.4 | 5.5 | 8.33 |
| 140 | 73 | 3.8 | 5.2 | 10.05 |
| 140 | 73 | 4.7 | 6.9 | 12.9 |
| 160 | 82 | 5 | 7.4 | 15.8 |
| 180 | 91 | 5.3 | 8 | 18.8 |
| 200 | 100 | 5.6 | 8.5 | 22.4 |
| 220 | 110 | 5.9 | 9 | 26.2 |
| 240 | 120 | 6.2 | 9.5 | 30.7 |
| 270 | 135 | 6.6 | 10 | 36.1 |
