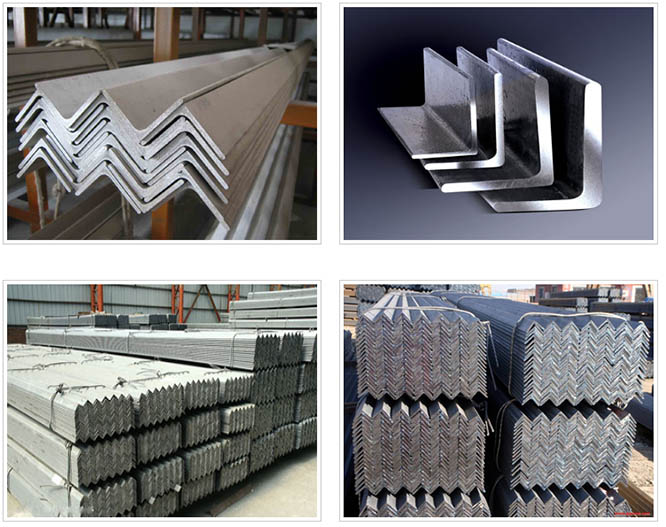

Steel Angle
- 0 Views
As per JIS G3101 SS400, ASTM A36, EN 10025 S275JR, GB700 Q235, Q345 etc.
Equal Angle and Unequal angle. Length as per customer’s request. Minimum order: 50MT per size
| Width*Width*Depth(mm) | Theoretical weight (kg/m) | Width*Width*Depth(mm) | Theoretical weight (kg/m) |
| 100*75*6 | 8.04 | 120*120*12 | 21.8 |
| 100*75*7 | 9.32 | 130*130*9 | 17.9 |
| 100*75*8 | 10.6 | 130*130*10 | 19.7 |
| 100*75*9 | 11.8 | 130*130*12 | 23.4 |
| 100*75*10 | 13 | 130*130*15 | 28.8 |
| 100*75*12 | 15.4 | 150*150*10 | 22.9 |
| 125*75*7 | 10.7 | 150*150*11 | 25.1 |
| 125*75*8 | 12.2 | 150*150*12 | 27.3 |
| 125*75*9 | 13.6 | 150*150*14 | 31.58 |
| 125*75*10 | 15 | 150*150*15 | 33.6 |
| 125*75*12 | 17.8 | 150*150*16 | 35.64 |
| 150*90*9 | 16.5 | 150*150*18 | 40.1 |
| 150*90*10 | 18.2 | 178*178*12 | 32.3 |
| 150*90*12 | 21.6 | 178*178*14 | 37.7 |
| 150*90*15 | 26.6 | 178*178*15 | 40.4 |
| 120*120*8 | 14.88 | 178*178*16 | 43.2 |
| 120*120*10 | 18.37 | 178*178*18 | 48.8 |
