Channel
- 0 Views

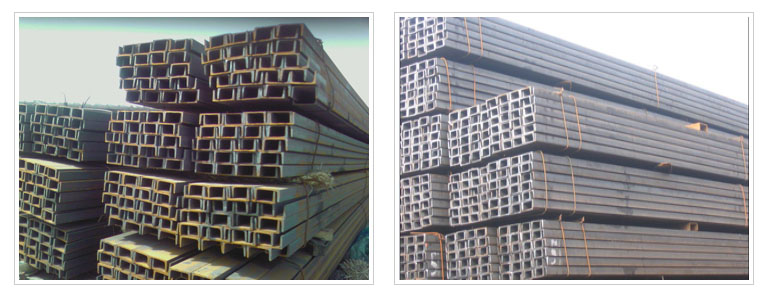

Steel U Channel as per JIS G3101 SS400, ASTM A36, EN 10025 S275JR, GB700 Q235B, Q345B etc.
Length as per customer’s request. Minimum order: 50MT per size.
| Width*Width（mm） | Waist Depth (mm) | Leg Depth (mm) | Theoretical Weight (kg/m) |
| 50*25 | 4 | 6 | 3.8 |
| 75*40 | 3.8 | 7 | 5.3 |
| 75*40 | 4 | 7 | 5.6 |
| 75*40 | 4.5 | 7 | 5.85 |
| 75*40 | 5 | 7 | 6.92 |
| 100*50 | 3.8 | 6 | 7.3 |
| 100*50 | 4.2 | 6 | 8.03 |
| 100*50 | 4.5 | 7.5 | 8.97 |
| 100*50 | 5 | 7.5 | 9.36 |
| 125*65 | 5.2 | 6.8 | 11.66 |
| 125*65 | 5.3 | 6.8 | 12.17 |
| 125*65 | 5.5 | 8 | 12.91 |
| 125*65 | 6 | 8 | 13.4 |
| 150*75 | 5.5 | 7.3 | 14.66 |
| 150*75 | 6.5 | 10 | 16.71 |
| 150*75 | 5.5 | 10 | 17.9 |
| 150*75 | 6.5 | 10 | 18.6 |
| 150*75 | 9 | 12.5 | 24 |
